Reynoclad® Profiled Aluminum Panels

Architectural Flexibility. Engineered Strength. Aluminum Performance

Reynoclad® profiled aluminum panels from Hoover Architectural Solutions provide a high-performance solution for contemporary building exteriors and interiors. Crafted from durable 3000-series aluminum and available in a range of architectural profiles, including ribbed, corrugated, and flush options, Reynoclad® panels combine aesthetics with structural reliability.

Engineered for versatility and performance, these panels are ideal for wall cladding, screening, and acoustical treatments. Each system is supported by a durable finish and a streamline installation process.

Product Profiles

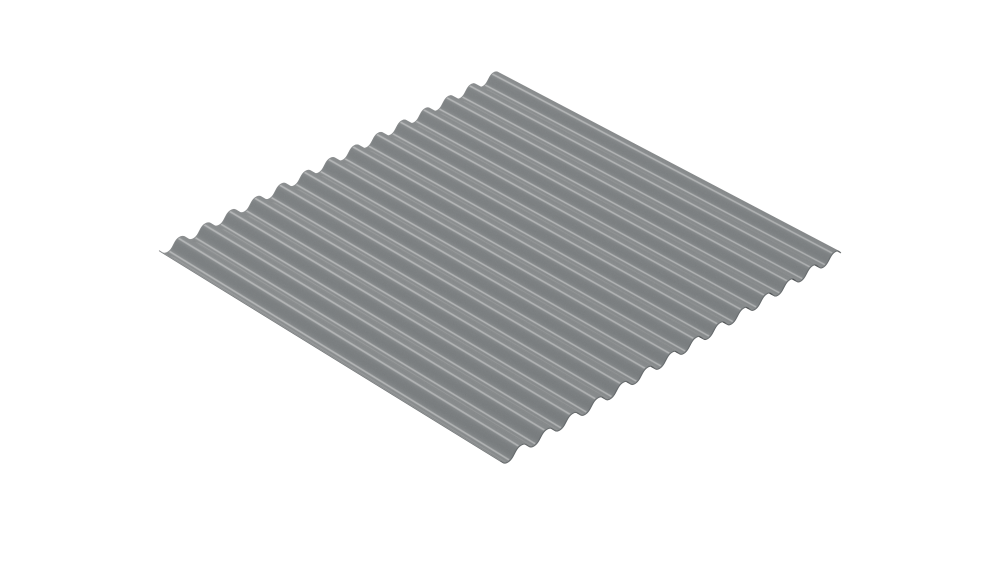

3/4″ Lap Corrugated Panel

A classic corrugated exposed-fastener profile ideal for both siding and acoustical applications. Offers exceptional negative load capability for areas with high wind pressures.

Panel Coverage: 34 2/3″
Rib Pitch: 2.67″
Profile Depth: 0.875″
Thickness: 0.040″
Weight: 0.62 lb/ft²
Length Range: 5′ – 20′
Finish Warranty: Up to 30 years

View technical sheet

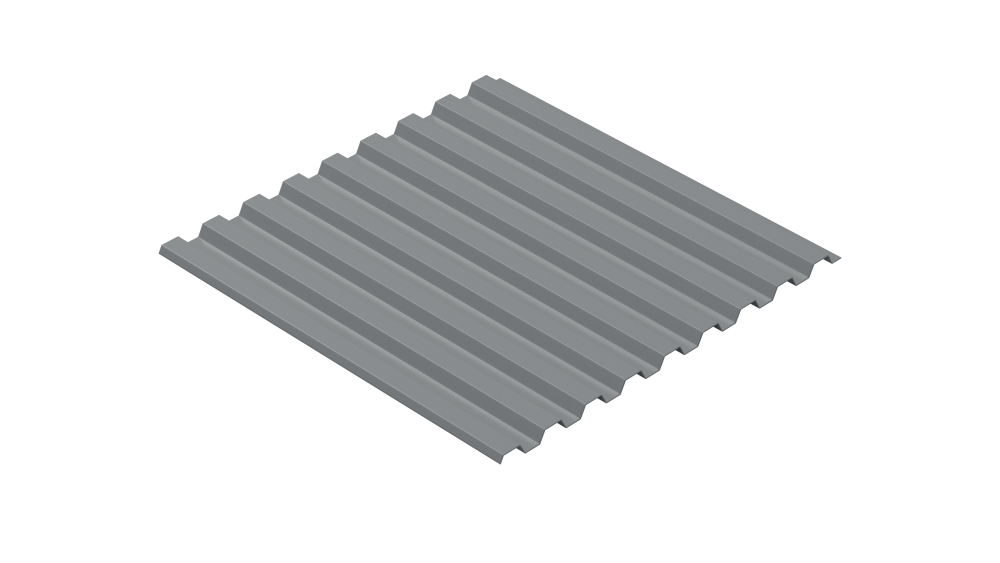

4″ Rib Panel

A durable, exposed-fastener panel with deep ribs and a strong architectural profile. Suitable for horizontal or vertical siding installations.

Panel Coverage: 36″
Rib Pitch: 4″
Profile Depth: 1″
Thickness: 0.040″
Weight: 0.62 lb/ft²
Length Range: 6′ – 45′
Finish Warranty: Up to 30 years

View technical sheet

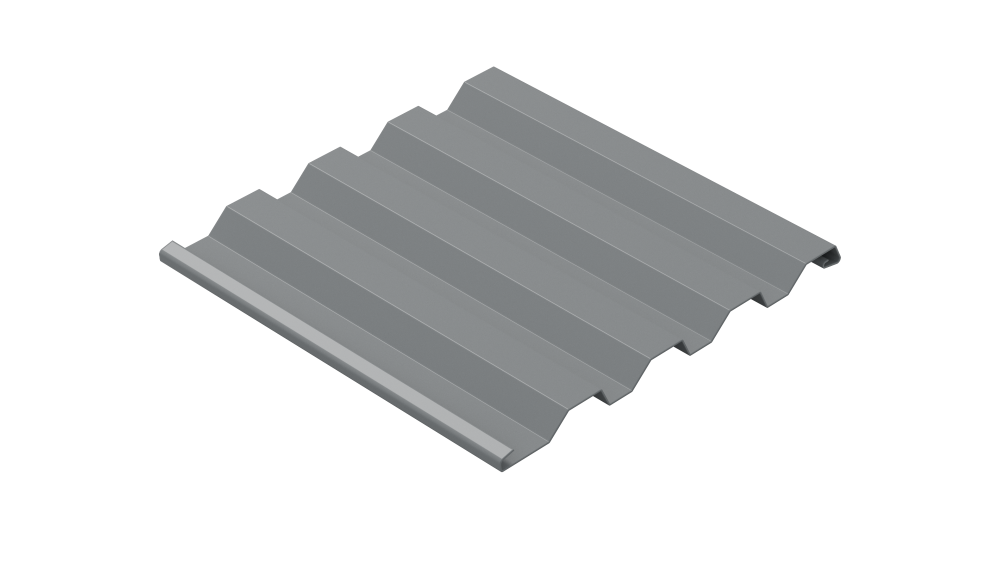

4HC Concealed Fastener Panel

A sleek horizontal concealed-fastener system, ideal for modern architectural facades. Available with flush or standoff clip attachments for flexible design.

Panel Coverage: 16″
Rib Pitch: 4″
Profile Depth: 7/8″
Thickness: 0.040″
Weight: 0.70 lb/ft²
Length Range: Up to 20′
Attachment Options: Clip System Standard (Extended Leg available upon request)
Finish Warranty: Up to 30 years

View technical sheet

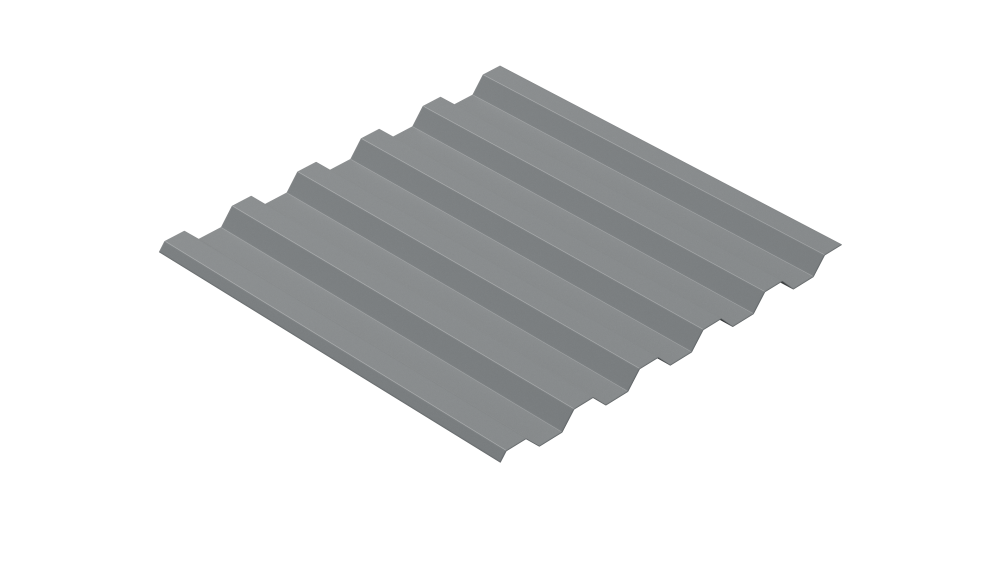

7.2″ Rib Panel

An exposed fastener panel designed for projects requiring long spans and high wind load resistance. Ideal for industrial, commercial, and institutional buildings.

Panel Coverage: 36″
Rib Spacing: 7.2″
Profile Depth: 1.5″
Thickness: 0.040″
Weight: 0.62 lb/ft²
Length Range: 5′ – 20′
Finish Warranty: Up to 30 years

View technical sheet

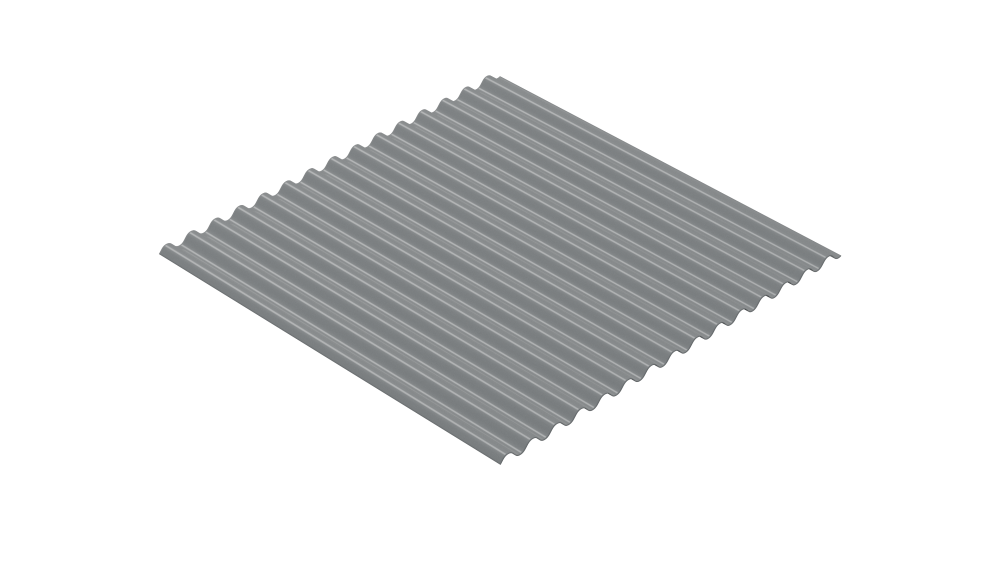

7/8″ Corrugated Panel

A versatile corrugated exposed-fastener profile with excellent negative load capability, suitable for wall applications. Perforated options are available for equipment screens or interior acoustical performance.

Panel Coverage: 37.33″
Rib Pitch: 2.67″
Profile Depth: 0.875″
Length Range: 5′ – 45′
Thickness: 0.040″
Weight: 0.62 lb/ft²
Finish Warranty: Up to 30 years

View technical sheet

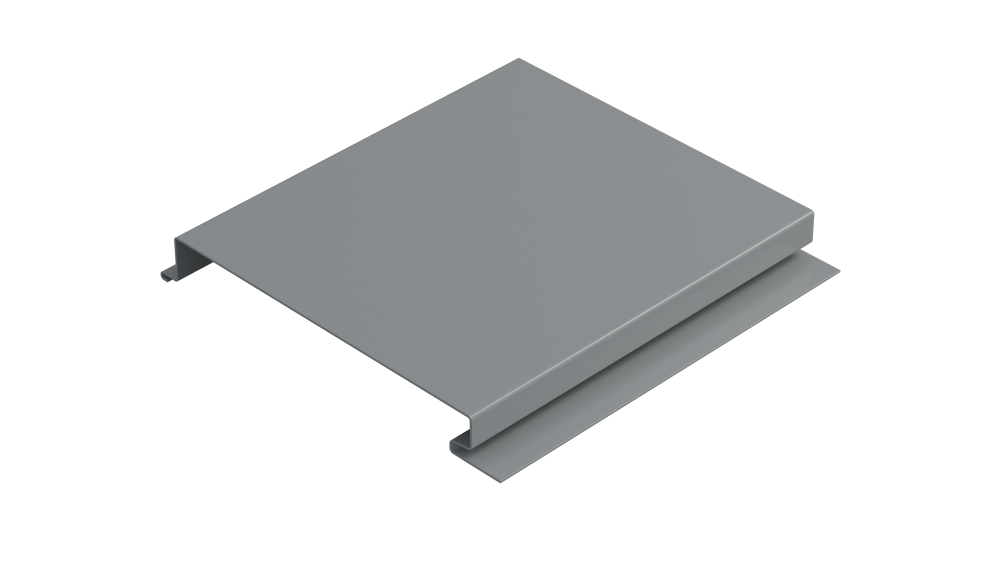

Flush Panel

A concealed fastener panel offering a flat, modern look for a wide range of architectural, commercial, and industrial applications. Suitable for walls, soffits, and fascia.

Panel Coverage: 12″
Profile Depth: 1 1/2″
Thickness: 0.040″
Weight: 0.62 lb/ft²
Length Range: 5′ – 20′
Features: Concealed fastening, smooth appearance
Finish Warranty: Up to 30 years

View technical sheet

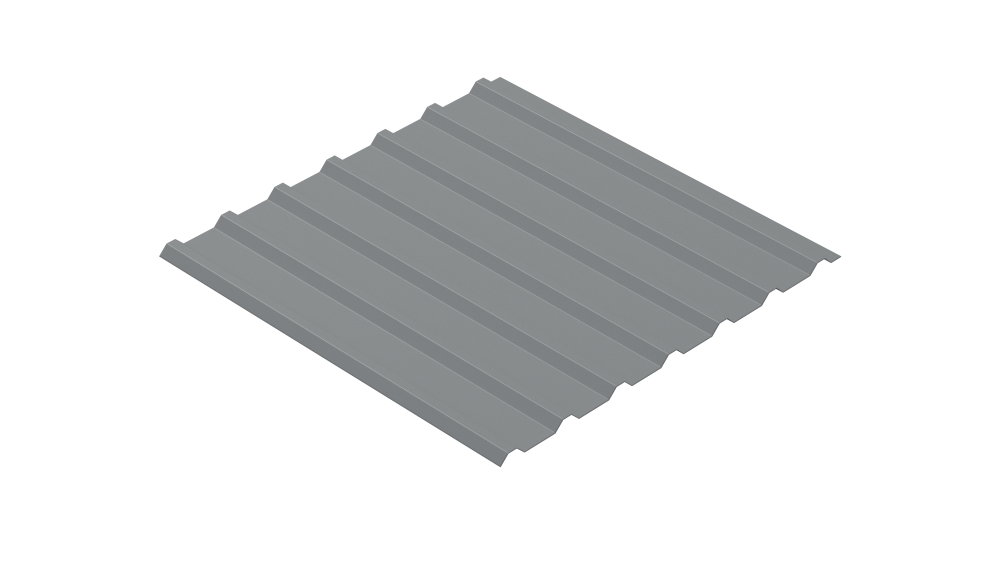

M-36 Panel

A reliable exposed-fastener panel designed for clean, watertight installations on walls. Built for long-term durability with up to a proven 30-year finish warranty.

Panel Coverage: 36″
Rib Pitch: 7.2″
Profile Depth: 1.5″
Thickness: 0.040″
Weight: 0.62 lb/ft²
Length Range: 6′ – 45′
Finish Warranty: Up to 30 years

View technical sheet

Applications

Architectural facades
Commercial and institutional buildings
Rainscreen cladding systems
Soffits
Acoustic interior panelling
Equipment screens
Canopies and overhangs

Industries Served

Reynoclad® profiled aluminum systems are designed to meet the performance and aesthetic demands across a range of sectors:

Commercial & Mixed-Use Developments

Educational & Institutional Facilities

Civic & Government Buildings

Healthcare Campuses

Manufacturing & Industrial Sites

Perforated for Parking Decks & Screen Walls

Key Benefits and Features

3000-series aluminum core with proven performance in architectural applications
High-performance coating with up to a 30-year finish warranty
Lightweight, corrosion-resistant material simplifies transport and installation
Profiles engineered for strength, span, and visual variety
Supports sustainable design goals; recyclable and compliant with ASTM B209

Finish Options

Reynoclad® Profiled Aluminum panels come with a durable coating, up to a 30-year finish warranty. Other coatings, including specialty or custom color options, may be available based on project requirements. Contact us to discuss finish alternatives.
